Instructions for removing a data logger
Step 1.1: Power Down the Existing System
- Ensure the current system is powered down before starting the removal process to avoid any electrical issues.
- Unplug the data logger and any connected sensors from the power supply.
Step 1.2: Open the Enclosure and Remove the Data Logger

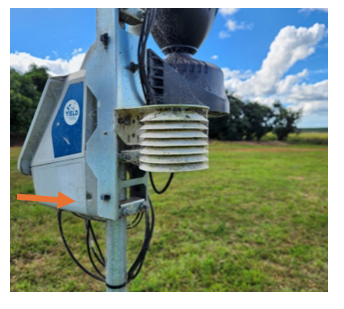

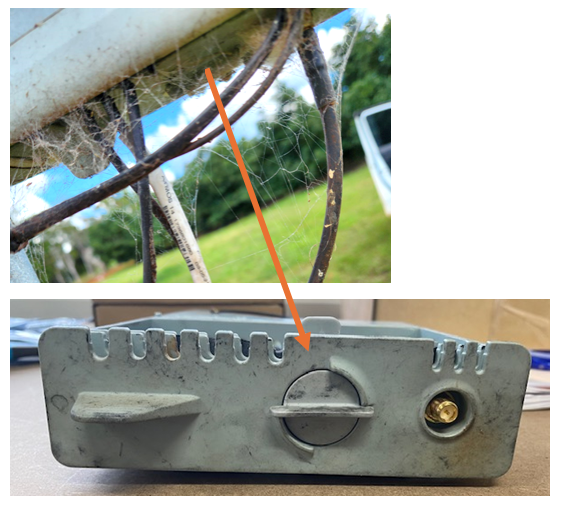

- To access the data logger, open the enclosure drawer by turning the knob on the bottom side of the enclosure.
- Press on the tab using a screwdriver on the side of the enclosure.
- Slide the box up and remove it carefully.
- Unscrew the base bracket of the old data logger box to free it from its mounting position.
